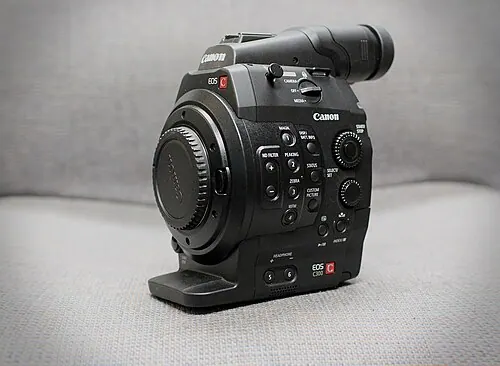

Canon EOS C300 Specs, Sensor Size & Crop Factor

Q: What is the crop factor of the Canon EOS C300?

The Canon EOS C300 has a crop factor of 1.53× relative to 35 mm full frame (diagonal 28.2 mm vs 43.3 mm).

1.53×

Crop factor

24.6×13.8 mm

Sensor size

339 mm²

Area · 39% of full frame

2.1 MP

Resolution

12.81 µm

Pixel pitch

f/19.1

Diffraction-limited aperture

Specifications#

Brand: Canon
Model: EOS C300
Camera type: Cinema / video camera
Lens mount: Canon EF
Sensor size: 24.6 × 13.8 mm (APS-C)
Crop factor: 1.53×
Resolution: 2.1 MP (1,920 × 1,080 px)
Continuous shooting: 30 fps
Max video resolution: 1080p
Weight: 1,430 g (50.4 oz)
Sensor type: CMOS
Storage: CompactFlash (CF) (Type I or Type II)
Battery: Canon BP-955 (included)Canon BP-975 (optional)

Specifications merged from Wikipedia and Wikidata. Spot an error? Tell us.

Sensor size compared#

The Canon EOS C300 sensor (highlighted) drawn to scale against common formats. Its area is 39% of a full-frame sensor, which collects about 1.3 stops less total light at the same exposure.

Focal length equivalents & field of view#

Multiply any focal length by 1.53 to get the full-frame field of view. Angles are for a rectilinear lens focused at infinity.

Lens on this camera	Full-frame equivalent	Horizontal	Vertical	Diagonal
8 mm	12 mm	113.9°	81.6°	120.9°
10 mm	15 mm	101.8°	69.2°	109.3°
12 mm	18 mm	91.4°	59.8°	99.2°
14 mm	21 mm	82.6°	52.5°	90.4°
16 mm	25 mm	75.1°	46.7°	82.8°
18 mm	28 mm	68.7°	41.9°	76.2°
20 mm	31 mm	63.2°	38.1°	70.4°
24 mm	37 mm	54.3°	32.1°	60.9°
28 mm	43 mm	47.4°	27.7°	53.5°
35 mm	54 mm	38.7°	22.3°	43.9°
40 mm	61 mm	34.2°	19.6°	38.8°
50 mm	77 mm	27.6°	15.7°	31.5°
56 mm	86 mm	24.8°	14.0°	28.3°
70 mm	107 mm	19.9°	11.3°	22.8°
85 mm	130 mm	16.5°	9.3°	18.8°
100 mm	153 mm	14.0°	7.9°	16.1°
135 mm	207 mm	10.4°	5.9°	11.9°
200 mm	307 mm	7.0°	4.0°	8.1°
300 mm	460 mm	4.7°	2.6°	5.4°
400 mm	614 mm	3.5°	2.0°	4.0°
600 mm	920 mm	2.3°	1.3°	2.7°
800 mm	1227 mm	1.8°	1.0°	2.0°

Depth of field table#

Total depth of field at each subject distance, using a circle of confusion of 19.6 µm (the 0.030 mm full-frame standard scaled by the crop factor). Detailed tables: 24 mm f/1.8, 24 mm f/2.8, 35 mm f/1.8, 35 mm f/2.8, 50 mm f/1.8, 50 mm f/2.8.

Focal	Aperture	50.0 cm	1.00 m	2.00 m	3.00 m	5.00 m	10.0 m	Hyperfocal
14 mm	f/1.8	8.8 cm	36.6 cm	1.63 m	4.52 m	45.2 m	∞	5.58 m
14 mm	f/2.8	13.8 cm	59.6 cm	3.21 m	16.5 m	∞	∞	3.59 m
14 mm	f/4	20.2 cm	93.1 cm	8.53 m	∞	∞	∞	2.52 m
14 mm	f/8	45.7 cm	4.14 m	∞	∞	∞	∞	1.27 m
28 mm	f/1.8	2.1 cm	8.7 cm	35.7 cm	81.5 cm	2.35 m	11.2 m	22.3 m
28 mm	f/2.8	3.3 cm	13.6 cm	56.2 cm	1.30 m	3.95 m	27.1 m	14.3 m
28 mm	f/4	4.7 cm	19.6 cm	81.9 cm	1.95 m	6.58 m	2.0 km	10.0 m
28 mm	f/8	9.5 cm	40.3 cm	1.86 m	5.49 m	643 m	∞	5.04 m
48 mm	f/1.8	0.7 cm	2.9 cm	11.9 cm	27.1 cm	76.1 cm	3.11 m	65.5 m
48 mm	f/2.8	1.1 cm	4.5 cm	18.6 cm	42.3 cm	1.19 m	5.01 m	42.1 m
48 mm	f/4	1.5 cm	6.5 cm	26.6 cm	60.7 cm	1.73 m	7.63 m	29.5 m
48 mm	f/8	3.1 cm	13.0 cm	54.0 cm	1.25 m	3.79 m	24.9 m	14.8 m
78 mm	f/1.8	0.2 cm	1.1 cm	4.4 cm	10.1 cm	28.5 cm	1.15 m	173 m
78 mm	f/2.8	0.4 cm	1.7 cm	6.9 cm	15.8 cm	44.4 cm	1.80 m	111 m
78 mm	f/4	0.5 cm	2.4 cm	9.9 cm	22.6 cm	63.5 cm	2.59 m	77.8 m
78 mm	f/8	1.1 cm	4.7 cm	19.8 cm	45.3 cm	1.29 m	5.46 m	39.0 m

Equivalent aperture#

Exposure is identical at the same f-number on any format; equivalence only describes depth of field and total light.

Aperture on this camera	Full-frame equivalent (depth of field)	Hyperfocal at 28 mm
f/1.2	f/1.8	33.4 m
f/1.4	f/2.1	28.7 m
f/1.8	f/2.8	22.3 m
f/2	f/3.1	20.1 m
f/2.8	f/4.3	14.3 m
f/4	f/6.1	10.0 m
f/5.6	f/8.6	7.19 m
f/8	f/12.3	5.04 m

Diffraction & pixel pitch#

With 12.81 µm pixels, diffraction starts to soften pixel-level detail around f/19.1. For maximum sharpness keep landscapes between f/10.5 and f/19; stopping down further trades detail for depth of field.

Aperture	Airy disk diameter	Spread over	At 100% view
f/2.8	3.8 µm	0.3 px	sharp
f/4	5.4 µm	0.4 px	sharp
f/5.6	7.5 µm	0.6 px	sharp
f/8	10.7 µm	0.8 px	sharp
f/11	14.8 µm	1.2 px	sharp
f/16	21.5 µm	1.7 px	sharp
f/22	29.5 µm	2.3 px	slight softening

Maximum print sizes#

At 2.1 MP the Canon EOS C300 produces 1,920 × 1,080 pixel images. See the 2 megapixel guide or the print size calculator.

Resolution	Typical use	Inches	Centimetres
300 DPI	Photo-lab quality	6.4 × 3.6 in	16 × 9 cm
240 DPI	Fine-art inkjet	8.0 × 4.5 in	20 × 11 cm
200 DPI	Wall print	9.6 × 5.4 in	24 × 14 cm
150 DPI	Poster, viewed from 1 m+	12.8 × 7.2 in	33 × 18 cm

Night-sky exposure limits#

Longest exposure before stars trail. The NPF rule accounts for pixel pitch and is stricter than the classic 500 rule — use it for pin-sharp stars on high-resolution sensors.

Focal length	500 rule	NPF f/1.8	NPF f/2.8	NPF f/4
9 mm (14 mm eq.)	36.2 s	49.7 s	53.6 s	58.3 s
13 mm (20 mm eq.)	25.1 s	34.4 s	37.1 s	40.3 s
16 mm (25 mm eq.)	20.4 s	28.0 s	30.1 s	32.8 s
23 mm (35 mm eq.)	14.2 s	19.5 s	21.0 s	22.8 s
33 mm (51 mm eq.)	9.9 s	13.6 s	14.6 s	15.9 s

Open the NPF / 500 rule calculator →

Handheld shutter speed guide#

The reciprocal rule uses the equivalent focal length. High-resolution sensors may need one stop faster than this for pixel-sharp results.

Focal length	No stabilisation (1/equiv. focal)	With 3-stop IS	With 5-stop IBIS
16 mm	1/25 s	0.3 s	1.3 s
33 mm	1/50 s	1/6 s	0.6 s
65 mm	1/100 s	1/13 s	0.3 s
130 mm	1/200 s	1/25 s	1/6 s

Lenses for the Canon EOS C300#

Native Canon EF lenses in our database (267 total). Also adaptable: T-mount (T2), M42 screw mount, Deckel (DKL), Tamron Adaptall, M39 / LTM (Leica thread).

Samyang 8mm f/3.5 Fish-Eye CS 8 mm
Samyang 10mm f/2.8 ED AS NCS CS 10 mm
Laowa 12mm f/2.8 Zero-D 12 mm
Samyang 12mm f/2.8 Fish-Eye ED AS NCS 12 mm
Canon EF 14mm f/2.8L II USM 14 mm
Samyang 14mm f/2.8 AE ED AS IF UMC 14 mm
Samyang AF 14mm f/2.8 14 mm
Sigma 14mm f/1.8 DG HSM | A 14 mm
Laowa 15mm F/4 Wide Angle Macro 15 mm
Canon EF 16-35mm f/4L IS USM 16–35 mm
Samyang 16mm f/2.0 ED AS UMC CS 16 mm
Samyang 20mm f/1.8 ED AS UMC 20 mm
Canon EF 24mm f/1.4L II USM 24 mm
Samyang 24mm f/1.4 ED AS IF UMC 24 mm
Samyang T-S 24mm f/3.5 ED AS UMC 24 mm
Sigma 24mm f/1.4 DG HSM | A 24 mm
Sigma 28mm F1.4 DG HSM | Art 28 mm
Viltrox AF 33mm f/1.4 XF 33 mm
Sigma 40mm F1.4 DG HSM | Art 40 mm
Canon EF 50mm f/1.8 50 mm
Canon EF 50mm f/1.8 II 50 mm
Canon EF 50mm f/1.8 STM 50 mm
Viltrox AF 56mm f/1.4 XF 56 mm
Laowa 60mm f/2.8 2X Ultra-Macro 60 mm
Canon EF 70-200mm f/2.8L IS II USM 70–200 mm
Sigma 70-200mm F2.8 DG OS HSM | S 70–200 mm
Samyang 85mm f/1.4 IF UMC Aspherical 85 mm
Sigma 100-400mm F5-6.3 DG OS HSM | C 100–400 mm
Sigma 100-400mm f/5-6.3 DG OS HSM | C +1.4x ext. 100–400 mm
Sigma 105 mm F1.4 DG HSM Art 105 mm
Samyang 135mm f/2 ED UMC 135 mm
Sigma 4.5mm f/2.8 EX DC HSM circular fisheye 4.5 mm
Canon EF 8-15mm f/4L Fisheye USM 8–15 mm
Sigma 8-16mm f/4.5-5.6 DC HSM 8–16 mm
Sigma 8mm f/3.5 EX DG circular fisheye 8 mm
Samyang XP 10mm f/3.5 10 mm

Similar cameras#

Other APS-C cameras from around the same time.

Frequently asked questions#

What is the crop factor of the Canon EOS C300?

The Canon EOS C300 has a crop factor of 1.53× relative to 35 mm full frame (diagonal 28.2 mm vs 43.3 mm).

What size is the Canon EOS C300 sensor?

24.6 × 13.8 mm (APS-C), an area of 339 mm² — 39% of full frame.

Is the Canon EOS C300 full frame?

No — its sensor is APS-C, which is 2.5× smaller in area than full frame.

How many megapixels does the Canon EOS C300 have?

2.1 megapixels (1,920 × 1,080 pixels), enough for a 6 × 4 inch print at 300 DPI.

What lens mount does the Canon EOS C300 use?

The Canon EOS C300 uses the Canon EF (flange distance 44.00 mm).

How long can I expose the night sky with the Canon EOS C300?

With a 13 mm lens (20 mm equivalent) the 500 rule gives 25 s and the stricter NPF rule at f/2.8 gives 37 s.
