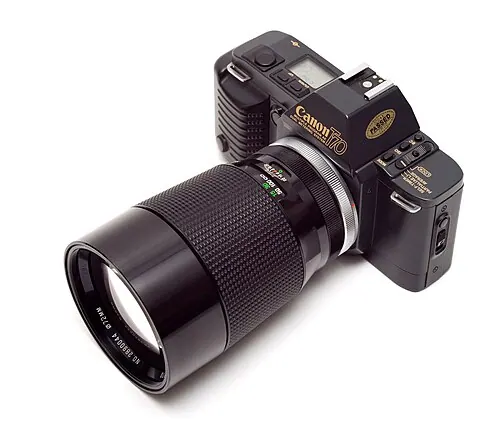

Specifications#
- Brand
- Canon
- Model
- T70
- Camera type
- Film SLR
- Film format
- 135 film
- Image area
- 51.0 × 48.0 mm (Medium format 53.4 × 40 mm)
- Crop factor
- 0.62×
- Weight
- 580 g (20.5 oz)
- Focus
- Manual
- Exposure modes
- Manual, Shutter Priority and Program autoexposure
- Flash
- Hot shoe
- Dimensions
- 89 x 151 x 48 mm
- Made in
- Japan
- Launch price
- 69,000 1984, body only
Specifications merged from Wikipedia and Wikidata. Spot an error? Tell us.
Sensor size compared#
Focal length equivalents & field of view#
Multiply any focal length by 0.62 to get the full-frame field of view. For fixed-lens cameras use the real focal length printed on the lens (e.g. “6.1–18.3 mm”), not the 35 mm equivalent.
| Lens on this camera | Full-frame equivalent | Horizontal | Vertical | Diagonal |
|---|---|---|---|---|
| 21 mm | 13 mm | 101.1° | 97.6° | 118.1° |
| 23 mm | 14 mm | 95.9° | 92.4° | 113.4° |
| 28 mm | 17 mm | 84.6° | 81.2° | 102.7° |
| 32 mm | 20 mm | 77.1° | 73.7° | 95.2° |
| 35 mm | 22 mm | 72.2° | 68.9° | 90.0° |
| 45 mm | 28 mm | 59.1° | 56.1° | 75.8° |
| 55 mm | 34 mm | 49.7° | 47.1° | 65.0° |
| 63 mm | 39 mm | 44.1° | 41.7° | 58.1° |
| 80 mm | 49 mm | 35.4° | 33.4° | 47.3° |
| 90 mm | 56 mm | 31.6° | 29.9° | 42.5° |
| 110 mm | 68 mm | 26.1° | 24.6° | 35.3° |
| 120 mm | 74 mm | 24.0° | 22.6° | 32.5° |
| 150 mm | 93 mm | 19.3° | 18.2° | 26.3° |
| 180 mm | 111 mm | 16.1° | 15.2° | 22.0° |
| 250 mm | 154 mm | 11.6° | 11.0° | 15.9° |
| 350 mm | 216 mm | 8.3° | 7.8° | 11.4° |
Depth of field table#
Total depth of field at each subject distance, using a circle of confusion of 48.6 µm (the 0.030 mm full-frame standard scaled by the crop factor).
| Focal | Aperture | 50.0 cm | 1.00 m | 2.00 m | 3.00 m | 5.00 m | 10.0 m | Hyperfocal |
|---|---|---|---|---|---|---|---|---|
| 35 mm | f/1.8 | 3.3 cm | 13.8 cm | 57.2 cm | 1.33 m | 4.05 m | 28.8 m | 14.0 m |
| 35 mm | f/2.8 | 5.2 cm | 21.7 cm | 91.6 cm | 2.21 m | 7.91 m | ∞ | 9.04 m |
| 35 mm | f/4 | 7.4 cm | 31.3 cm | 1.38 m | 3.62 m | 20.7 m | ∞ | 6.34 m |
| 35 mm | f/8 | 15.1 cm | 67.5 cm | 4.08 m | 48.7 m | ∞ | ∞ | 3.19 m |
| 70 mm | f/1.8 | 0.8 cm | 3.3 cm | 13.8 cm | 31.4 cm | 88.6 cm | 3.66 m | 56.1 m |
| 70 mm | f/2.8 | 1.2 cm | 5.2 cm | 21.5 cm | 49.1 cm | 1.39 m | 5.96 m | 36.1 m |
| 70 mm | f/4 | 1.7 cm | 7.4 cm | 30.8 cm | 70.6 cm | 2.03 m | 9.32 m | 25.3 m |
| 70 mm | f/8 | 3.4 cm | 14.8 cm | 62.7 cm | 1.47 m | 4.61 m | 41.4 m | 12.7 m |
| 119 mm | f/1.8 | 0.2 cm | 1.1 cm | 4.6 cm | 10.7 cm | 30.2 cm | 1.22 m | 162 m |
| 119 mm | f/2.8 | 0.4 cm | 1.7 cm | 7.2 cm | 16.6 cm | 47.0 cm | 1.91 m | 104 m |
| 119 mm | f/4 | 0.5 cm | 2.4 cm | 10.3 cm | 23.7 cm | 67.3 cm | 2.76 m | 73.0 m |
| 119 mm | f/8 | 1.0 cm | 4.8 cm | 20.7 cm | 47.7 cm | 1.36 m | 5.85 m | 36.6 m |
| 196 mm | f/1.8 | 0.1 cm | 0.4 cm | 1.6 cm | 3.8 cm | 10.9 cm | 44.6 cm | 440 m |
| 196 mm | f/2.8 | 0.1 cm | 0.6 cm | 2.6 cm | 6.0 cm | 17.0 cm | 69.5 cm | 283 m |
| 196 mm | f/4 | 0.2 cm | 0.8 cm | 3.6 cm | 8.5 cm | 24.3 cm | 99.4 cm | 198 m |
| 196 mm | f/8 | 0.3 cm | 1.6 cm | 7.3 cm | 17.0 cm | 48.7 cm | 2.00 m | 99.1 m |
Equivalent aperture#
Exposure is identical at the same f-number on any format; equivalence only describes depth of field and total light.
Night-sky exposure limits#
Longest exposure before stars trail. The NPF rule accounts for pixel pitch and is stricter than the classic 500 rule — use it for pin-sharp stars on high-resolution sensors. (NPF needs a known resolution and is omitted here.)
| Focal length | 500 rule |
|---|---|
| 23 mm (14 mm eq.) | 35.2 s |
| 32 mm (20 mm eq.) | 25.3 s |
| 39 mm (24 mm eq.) | 20.8 s |
| 57 mm (35 mm eq.) | 14.2 s |
| 81 mm (50 mm eq.) | 10.0 s |
Handheld shutter speed guide#
The reciprocal rule uses the equivalent focal length. High-resolution sensors may need one stop faster than this for pixel-sharp results.
| Focal length | No stabilisation (1/equiv. focal) | With 3-stop IS | With 5-stop IBIS |
|---|---|---|---|
| 39 mm | 1/25 s | 0.3 s | 1.3 s |
| 81 mm | 1/50 s | 1/6 s | 0.6 s |
| 162 mm | 1/100 s | 1/13 s | 0.3 s |
| 324 mm | 1/200 s | 1/25 s | 1/6 s |
Film stocks for the Canon T70#
Films currently made in 135 format.
- ADOX CHS 100 II ISO 100
- ADOX CMS 20 II PRO ISO 20
- ADOX Color Mission 200 ISO 200
- ADOX Color Mission Helios ISO 3
- ADOX HR-50 ISO 50
- ADOX Scala 50 ISO 50
- Agfa Copex Rapid ISO 50
- AgfaPhoto APX 100 ISO 100
- AgfaPhoto APX 200 ISO 200
- AgfaPhoto APX 400 ISO 400
- AgfaPhoto Color 400 ISO 400
- Argenti ARF+ Reporter Film Plus ISO 400
- Argenti Nanotomic X ISO 32
- Argenti Pan-X ISO 100
- Argenti Scale-X ISO 100
- Bergger Pancro 400 ISO 400
- CatLABS X FILM 320 ISO 320
- CatLABS X FILM 320 Pro ISO 320
Similar cameras#
Other Medium format 53.4 × 40 mm film cameras from around the same time.
Frequently asked questions#
What is the crop factor of the Canon T70?
The Canon T70 has a crop factor of 0.62× relative to 35 mm full frame (diagonal 70.0 mm vs 43.3 mm).
What size is the Canon T70 frame?
51.0 × 48.0 mm (Medium format 53.4 × 40 mm), an area of 2448 mm² — 283% of full frame.
How long can I expose the night sky with the Canon T70?
With a 32 mm lens (20 mm equivalent) the 500 rule gives 25 s.
