Specifications#
- Brand
- Panasonic

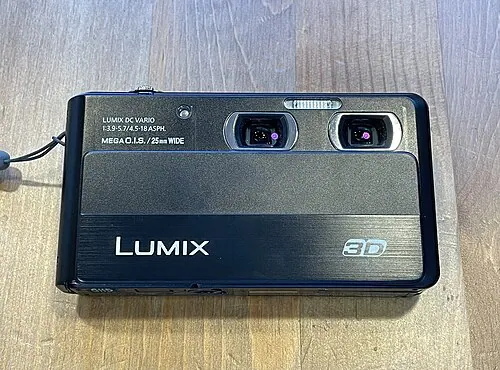

- Model
- Lumix DMC-3D1
- Also known as
- DMC-3D1
- Camera type
- Compact
- Sensor size
- 58.5 × 24.1 mm
- Crop factor
- 0.68×
- Resolution
- 12.1 MP (5,420 × 2,233 px)
- Fastest shutter
- 1/1,300 s
- Weight
- 171 g (6.0 oz)
- Sensor type
- MOS
- Storage
- SD, SDHC, SDXC
- AF points / area
- Normal: Wide 50 cm - infinity / Tele 100 cm - infinity / Macro / Intelligent Auto / Motion Picture: Wide 5 cm - infinity / Tele 100 cm - infinity (2D) Normal: Wide 50 cm - infinity / Tele 100 cm - infinity (3D)
- Flash
- built-in
- Battery
- Li-ion Battery Pack (3.6V, Minimum:895mAh)
- Dimensions
- 108.0 x 58.5 x 24.1 mm
- Made in
- property linked P1071
Specifications merged from Wikipedia, Wikidata and openMVG. Spot an error? Tell us.
Sensor size compared#
Focal length equivalents & field of view#
Multiply any focal length by 0.68 to get the full-frame field of view. For fixed-lens cameras use the real focal length printed on the lens (e.g. “6.1–18.3 mm”), not the 35 mm equivalent.
| Lens on this camera | Full-frame equivalent | Horizontal | Vertical | Diagonal |
|---|---|---|---|---|
| 21 mm | 14 mm | 108.6° | 59.7° | 112.8° |
| 23 mm | 16 mm | 103.6° | 55.3° | 108.0° |
| 28 mm | 19 mm | 92.5° | 46.6° | 97.0° |
| 32 mm | 22 mm | 84.9° | 41.3° | 89.3° |
| 35 mm | 24 mm | 79.8° | 38.0° | 84.2° |
| 45 mm | 31 mm | 66.0° | 30.0° | 70.2° |
| 55 mm | 38 mm | 56.0° | 24.7° | 59.8° |
| 63 mm | 43 mm | 49.8° | 21.7° | 53.3° |
| 80 mm | 55 mm | 40.2° | 17.1° | 43.2° |
| 90 mm | 62 mm | 36.0° | 15.3° | 38.7° |
| 110 mm | 75 mm | 29.8° | 12.5° | 32.1° |
| 120 mm | 82 mm | 27.4° | 11.5° | 29.5° |
| 150 mm | 103 mm | 22.1° | 9.2° | 23.8° |
| 180 mm | 123 mm | 18.5° | 7.7° | 19.9° |
| 250 mm | 171 mm | 13.3° | 5.5° | 14.4° |
| 350 mm | 239 mm | 9.6° | 3.9° | 10.3° |
Depth of field table#
Total depth of field at each subject distance, using a circle of confusion of 43.9 µm (the 0.030 mm full-frame standard scaled by the crop factor).
| Focal | Aperture | 50.0 cm | 1.00 m | 2.00 m | 3.00 m | 5.00 m | 10.0 m | Hyperfocal |
|---|---|---|---|---|---|---|---|---|
| 32 mm | f/1.8 | 3.6 cm | 15.0 cm | 62.1 cm | 1.45 m | 4.49 m | 37.6 m | 13.0 m |
| 32 mm | f/2.8 | 5.6 cm | 23.5 cm | 1.00 m | 2.45 m | 9.24 m | ∞ | 8.37 m |
| 32 mm | f/4 | 8.1 cm | 34.1 cm | 1.52 m | 4.12 m | 30.9 m | ∞ | 5.87 m |
| 32 mm | f/8 | 16.5 cm | 74.6 cm | 4.95 m | ∞ | ∞ | ∞ | 2.95 m |
| 63 mm | f/1.8 | 0.9 cm | 3.7 cm | 15.4 cm | 35.2 cm | 99.2 cm | 4.11 m | 50.3 m |
| 63 mm | f/2.8 | 1.4 cm | 5.8 cm | 24.1 cm | 55.0 cm | 1.56 m | 6.79 m | 32.4 m |
| 63 mm | f/4 | 1.9 cm | 8.3 cm | 34.5 cm | 79.2 cm | 2.29 m | 10.9 m | 22.7 m |
| 63 mm | f/8 | 3.9 cm | 16.7 cm | 70.6 cm | 1.67 m | 5.39 m | 77.1 m | 11.4 m |
| 107 mm | f/1.8 | 0.3 cm | 1.2 cm | 5.2 cm | 12.0 cm | 33.8 cm | 1.37 m | 145 m |
| 107 mm | f/2.8 | 0.4 cm | 1.9 cm | 8.1 cm | 18.6 cm | 52.6 cm | 2.15 m | 93.3 m |
| 107 mm | f/4 | 0.6 cm | 2.7 cm | 11.6 cm | 26.7 cm | 75.4 cm | 3.10 m | 65.4 m |
| 107 mm | f/8 | 1.2 cm | 5.5 cm | 23.3 cm | 53.6 cm | 1.53 m | 6.68 m | 32.7 m |
| 176 mm | f/1.8 | 0.1 cm | 0.4 cm | 1.9 cm | 4.3 cm | 12.3 cm | 50.1 cm | 392 m |
| 176 mm | f/2.8 | 0.1 cm | 0.7 cm | 2.9 cm | 6.7 cm | 19.1 cm | 78.0 cm | 252 m |
| 176 mm | f/4 | 0.2 cm | 0.9 cm | 4.1 cm | 9.6 cm | 27.3 cm | 1.12 m | 177 m |
| 176 mm | f/8 | 0.4 cm | 1.9 cm | 8.3 cm | 19.2 cm | 54.8 cm | 2.25 m | 88.4 m |
Equivalent aperture#
Exposure is identical at the same f-number on any format; equivalence only describes depth of field and total light.
Diffraction & pixel pitch#
With 10.79 µm pixels, diffraction starts to soften pixel-level detail around f/16.1. For maximum sharpness keep landscapes between f/8.8 and f/16; stopping down further trades detail for depth of field.
| Aperture | Airy disk diameter | Spread over | At 100% view |
|---|---|---|---|
| f/2.8 | 3.8 µm | 0.3 px | sharp |
| f/4 | 5.4 µm | 0.5 px | sharp |
| f/5.6 | 7.5 µm | 0.7 px | sharp |
| f/8 | 10.7 µm | 1.0 px | sharp |
| f/11 | 14.8 µm | 1.4 px | sharp |
| f/16 | 21.5 µm | 2.0 px | sharp |
| f/22 | 29.5 µm | 2.7 px | slight softening |
Maximum print sizes#
At 12.1 MP the Panasonic Lumix DMC-3D1 produces 5,420 × 2,233 pixel images. See the 12 megapixel guide or the print size calculator.
| Resolution | Typical use | Inches | Centimetres |
|---|---|---|---|
| 300 DPI | Photo-lab quality | 18.1 × 7.4 in | 46 × 19 cm |
| 240 DPI | Fine-art inkjet | 22.6 × 9.3 in | 57 × 24 cm |
| 200 DPI | Wall print | 27.1 × 11.2 in | 69 × 28 cm |
| 150 DPI | Poster, viewed from 1 m+ | 36.1 × 14.9 in | 92 × 38 cm |
Night-sky exposure limits#
Longest exposure before stars trail. The NPF rule accounts for pixel pitch and is stricter than the classic 500 rule — use it for pin-sharp stars on high-resolution sensors.
| Focal length | 500 rule | NPF f/1.8 | NPF f/2.8 | NPF f/4 |
|---|---|---|---|---|
| 20 mm (14 mm eq.) | 36.6 s | 19.3 s | 21.1 s | 23.2 s |
| 29 mm (20 mm eq.) | 25.2 s | 13.3 s | 14.5 s | 16.0 s |
| 35 mm (24 mm eq.) | 20.9 s | 11.1 s | 12.1 s | 13.3 s |
| 51 mm (35 mm eq.) | 14.3 s | 7.6 s | 8.3 s | 9.1 s |
| 73 mm (50 mm eq.) | 10.0 s | 5.3 s | 5.8 s | 6.4 s |
Handheld shutter speed guide#
The reciprocal rule uses the equivalent focal length. High-resolution sensors may need one stop faster than this for pixel-sharp results.
| Focal length | No stabilisation (1/equiv. focal) | With 3-stop IS | With 5-stop IBIS |
|---|---|---|---|
| 35 mm | 1/25 s | 0.3 s | 1.3 s |
| 73 mm | 1/50 s | 1/6 s | 0.6 s |
| 146 mm | 1/100 s | 1/13 s | 0.3 s |
| 292 mm | 1/200 s | 1/25 s | 1/6 s |
Lens#
The Panasonic Lumix DMC-3D1 has a built-in, non-interchangeable lens. Use the real focal length of that lens with the tables above; its full-frame equivalent is that number × 0.68.
Frequently asked questions#
What is the crop factor of the Panasonic Lumix DMC-3D1?
The Panasonic Lumix DMC-3D1 has a crop factor of 0.68× relative to 35 mm full frame (diagonal 63.3 mm vs 43.3 mm).
What size is the Panasonic Lumix DMC-3D1 sensor?
58.5 × 24.1 mm (58.5 × 24.1 mm), an area of 1410 mm² — 163% of full frame.
Is the Panasonic Lumix DMC-3D1 full frame?
No — its sensor is larger than full frame (medium format).
How many megapixels does the Panasonic Lumix DMC-3D1 have?
12.1 megapixels (5,420 × 2,233 pixels), enough for a 18 × 7 inch print at 300 DPI.
How long can I expose the night sky with the Panasonic Lumix DMC-3D1?
With a 29 mm lens (20 mm equivalent) the 500 rule gives 25 s and the stricter NPF rule at f/2.8 gives 15 s.
