Large-sensor compact

Kodak DC3200

The Kodak DC3200 is a large-sensor compact with a APS-H sensor measuring 27.6 × 18.4 mm and 1 megapixels. Its crop factor is 1.30×, so a 50 mm lens frames like 65 mm on full frame. Every number below is calculated for this exact sensor.

APS-H1.30× crop1 MP

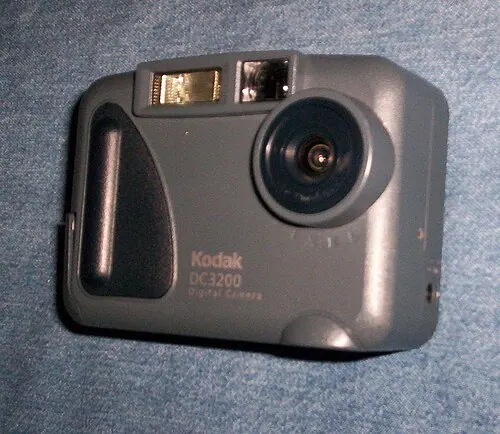

Kodak DC3200 camera
Photo: JohnDLG at English Wikipedia, Public domain, via Wikimedia Commons
1.30×
Crop factor
27.6×18.4 mm
Sensor size
510 mm²
Area · 59% of full frame
1 MP
Resolution
24.00 µm
Pixel pitch
f/35.8
Diffraction-limited aperture

Specifications#

Brand
Kodak
Model
DC3200
Also known as
KODAK DC3200 DIGITAL CAMERA
Sensor size
27.6 × 18.4 mm (APS-H)
Crop factor
1.30×
Resolution
1 MP (1,152 × 864 px)
Fastest shutter
1/500 s
Weight
215 g (7.6 oz)
Sensor
CCD
Storage
CompactFlash I / 2 MB internal
Viewfinder
Optical
Shutter
1/4 s - 1/500 s
Flash
Internal, 1.4m - 2.4m range; Auto, Fill-In, Off
Battery
Four AA battery
Dimensions
113 x 81 x 53 mm, 4.45 x 3.1 x 2.1 inch
Lens
Fixed 39 mm (35 mm equiv.) F3.6

Specifications merged from Wikipedia, Wikidata and openMVG. Spot an error? Tell us.

Sensor size compared#

Medium format 44 × 33 mmFull frame (35 mm)Kodak DC3200APS-CFour Thirds / Micro Four Thirds1" (one-inch) sensor
The Kodak DC3200 sensor (highlighted) drawn to scale against common formats. Its area is 59% of a full-frame sensor, which collects about 0.8 stops less total light at the same exposure.

Focal length equivalents & field of view#

Multiply any focal length by 1.30 to get the full-frame field of view. For fixed-lens cameras use the real focal length printed on the lens (e.g. “6.1–18.3 mm”), not the 35 mm equivalent.

Lens on this cameraFull-frame equivalentHorizontalVerticalDiagonal
8 mm10 mm119.9°98.1°128.6°
10 mm13 mm108.2°85.3°117.9°
12 mm16 mm98.1°75.0°108.3°
14 mm18 mm89.3°66.7°99.8°
16 mm21 mm81.7°59.9°92.2°
18 mm23 mm75.1°54.2°85.4°
20 mm26 mm69.3°49.5°79.4°
24 mm31 mm59.9°42.0°69.4°
28 mm36 mm52.6°36.4°61.4°
35 mm46 mm43.1°29.5°50.8°
40 mm52 mm38.1°25.9°45.1°
50 mm65 mm30.9°20.9°36.8°
56 mm73 mm27.7°18.7°33.1°
70 mm91 mm22.3°15.0°26.7°
85 mm111 mm18.5°12.4°22.1°
100 mm130 mm15.7°10.5°18.9°
135 mm176 mm11.7°7.8°14.0°
200 mm260 mm7.9°5.3°9.5°
300 mm391 mm5.3°3.5°6.3°
400 mm521 mm4.0°2.6°4.8°
600 mm781 mm2.6°1.8°3.2°
800 mm1042 mm2.0°1.3°2.4°

Depth of field table#

Total depth of field at each subject distance, using a circle of confusion of 23.0 µm (the 0.030 mm full-frame standard scaled by the crop factor).

FocalAperture50.0 cm1.00 m2.00 m3.00 m5.00 m10.0 mHyperfocal
16 mmf/1.87.9 cm32.7 cm1.43 m3.79 m23.2 m∞6.19 m
16 mmf/2.812.4 cm52.8 cm2.67 m10.4 m∞∞3.98 m
16 mmf/418.0 cm81.0 cm5.83 m∞∞∞2.79 m
16 mmf/839.7 cm2.85 m∞∞∞∞1.40 m
33 mmf/1.81.8 cm7.4 cm30.1 cm68.7 cm1.96 m8.87 m26.3 m
33 mmf/2.82.8 cm11.5 cm47.3 cm1.09 m3.22 m18.1 m16.9 m
33 mmf/44.0 cm16.5 cm68.5 cm1.61 m5.11 m58.5 m11.8 m
33 mmf/88.0 cm33.6 cm1.50 m4.03 m28.7 m∞5.94 m
56 mmf/1.80.6 cm2.5 cm10.3 cm23.4 cm65.7 cm2.68 m75.7 m
56 mmf/2.80.9 cm3.9 cm16.0 cm36.5 cm1.03 m4.27 m48.7 m
56 mmf/41.3 cm5.6 cm22.9 cm52.3 cm1.48 m6.39 m34.1 m
56 mmf/82.6 cm11.1 cm46.3 cm1.07 m3.17 m17.8 m17.1 m
92 mmf/1.80.2 cm0.9 cm3.7 cm8.6 cm24.1 cm97.3 cm204 m
92 mmf/2.80.3 cm1.4 cm5.8 cm13.3 cm37.5 cm1.52 m131 m
92 mmf/40.4 cm2.0 cm8.3 cm19.0 cm53.6 cm2.18 m91.9 m
92 mmf/80.9 cm4.0 cm16.6 cm38.2 cm1.08 m4.53 m46.0 m

Equivalent aperture#

Exposure is identical at the same f-number on any format; equivalence only describes depth of field and total light.

Aperture on this cameraFull-frame equivalent (depth of field)Hyperfocal at 33 mm
f/1.2f/1.639.4 m
f/1.4f/1.833.8 m
f/1.8f/2.326.3 m
f/2f/2.623.7 m
f/2.8f/3.616.9 m
f/4f/5.211.8 m
f/5.6f/7.38.47 m
f/8f/10.45.94 m

Diffraction & pixel pitch#

With 24.00 µm pixels, diffraction starts to soften pixel-level detail around f/35.8. For maximum sharpness keep landscapes between f/19.7 and f/36; stopping down further trades detail for depth of field.

ApertureAiry disk diameterSpread overAt 100% view
f/2.83.8 µm0.2 pxsharp
f/45.4 µm0.2 pxsharp
f/5.67.5 µm0.3 pxsharp
f/810.7 µm0.4 pxsharp
f/1114.8 µm0.6 pxsharp
f/1621.5 µm0.9 pxsharp
f/2229.5 µm1.2 pxsharp

Maximum print sizes#

At 1 MP the Kodak DC3200 produces 1,152 × 864 pixel images. See the 2 megapixel guide or the print size calculator.

ResolutionTypical useInchesCentimetres
300 DPIPhoto-lab quality3.8 × 2.9 in10 × 7 cm
240 DPIFine-art inkjet4.8 × 3.6 in12 × 9 cm
200 DPIWall print5.8 × 4.3 in15 × 11 cm
150 DPIPoster, viewed from 1 m+7.7 × 5.8 in20 × 15 cm

Night-sky exposure limits#

Longest exposure before stars trail. The NPF rule accounts for pixel pitch and is stricter than the classic 500 rule — use it for pin-sharp stars on high-resolution sensors.

Focal length500 ruleNPF f/1.8NPF f/2.8NPF f/4
11 mm (14 mm eq.)34.9 s71.2 s74.4 s78.2 s
15 mm (20 mm eq.)25.6 s52.2 s54.5 s57.3 s
18 mm (23 mm eq.)21.3 s43.5 s45.4 s47.8 s
27 mm (35 mm eq.)14.2 s29.0 s30.3 s31.9 s
38 mm (49 mm eq.)10.1 s20.6 s21.5 s22.6 s

Open the NPF / 500 rule calculator →

Handheld shutter speed guide#

The reciprocal rule uses the equivalent focal length. High-resolution sensors may need one stop faster than this for pixel-sharp results.

Focal lengthNo stabilisation (1/equiv. focal)With 3-stop ISWith 5-stop IBIS
18 mm1/25 s0.3 s1.3 s
38 mm1/50 s1/6 s0.6 s
77 mm1/100 s1/13 s0.3 s
154 mm1/200 s1/25 s1/6 s

Lens#

The Kodak DC3200 has a built-in, non-interchangeable lens. Use the real focal length of that lens with the tables above; its full-frame equivalent is that number × 1.30.

Frequently asked questions#

What is the crop factor of the Kodak DC3200?

The Kodak DC3200 has a crop factor of 1.30× relative to 35 mm full frame (diagonal 33.2 mm vs 43.3 mm).

What size is the Kodak DC3200 sensor?

27.6 × 18.4 mm (APS-H), an area of 510 mm² — 59% of full frame.

Is the Kodak DC3200 full frame?

No — its sensor is APS-H, which is 1.7× smaller in area than full frame.

How many megapixels does the Kodak DC3200 have?

1 megapixels (1,152 × 864 pixels), enough for a 4 × 3 inch print at 300 DPI.

How long can I expose the night sky with the Kodak DC3200?

With a 15 mm lens (20 mm equivalent) the 500 rule gives 26 s and the stricter NPF rule at f/2.8 gives 55 s.
